Centrifugal Compressors

Centrifugal Compressors Test Bench

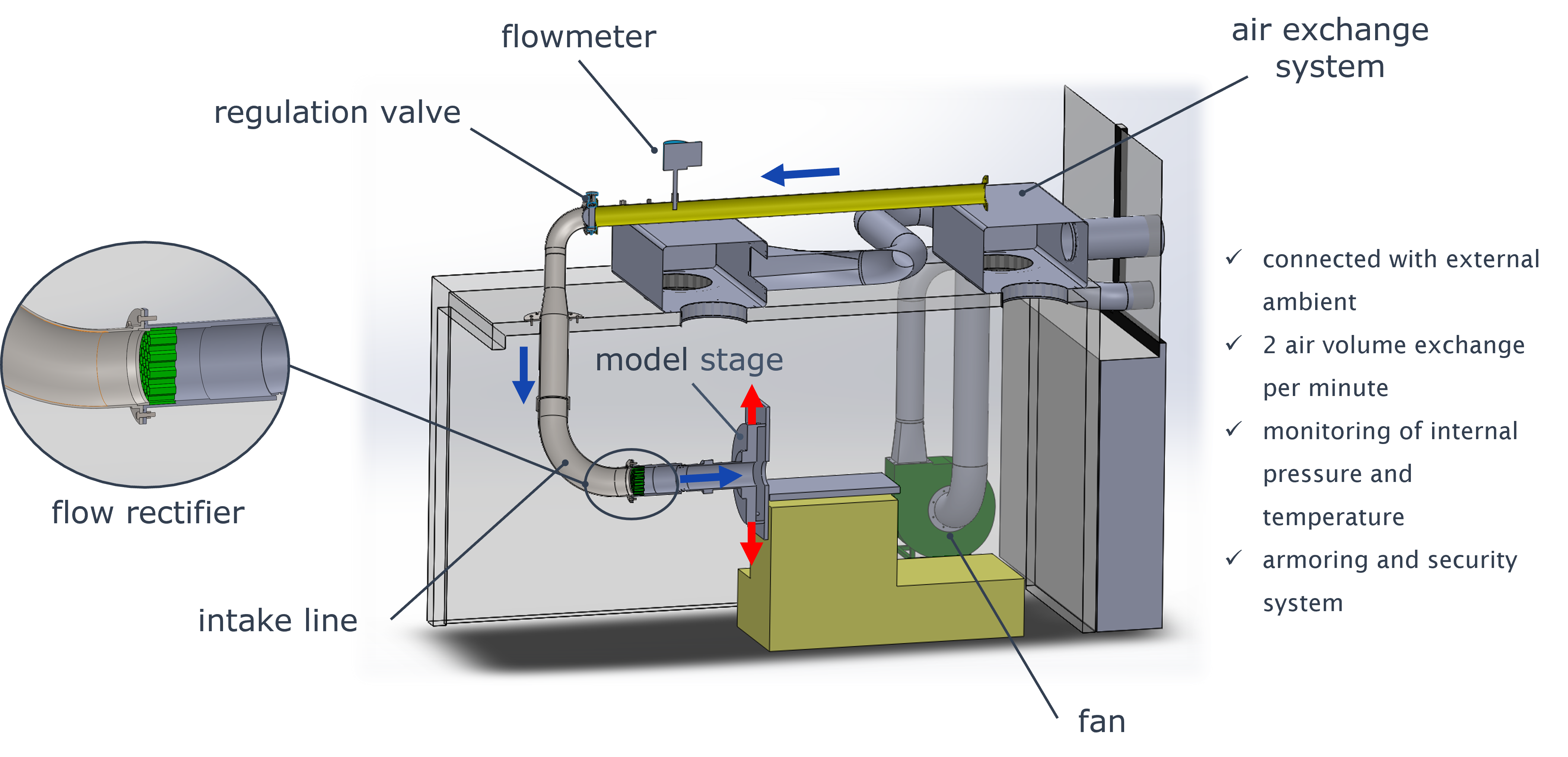

                                                          Overview of centrifugal compressor test bench

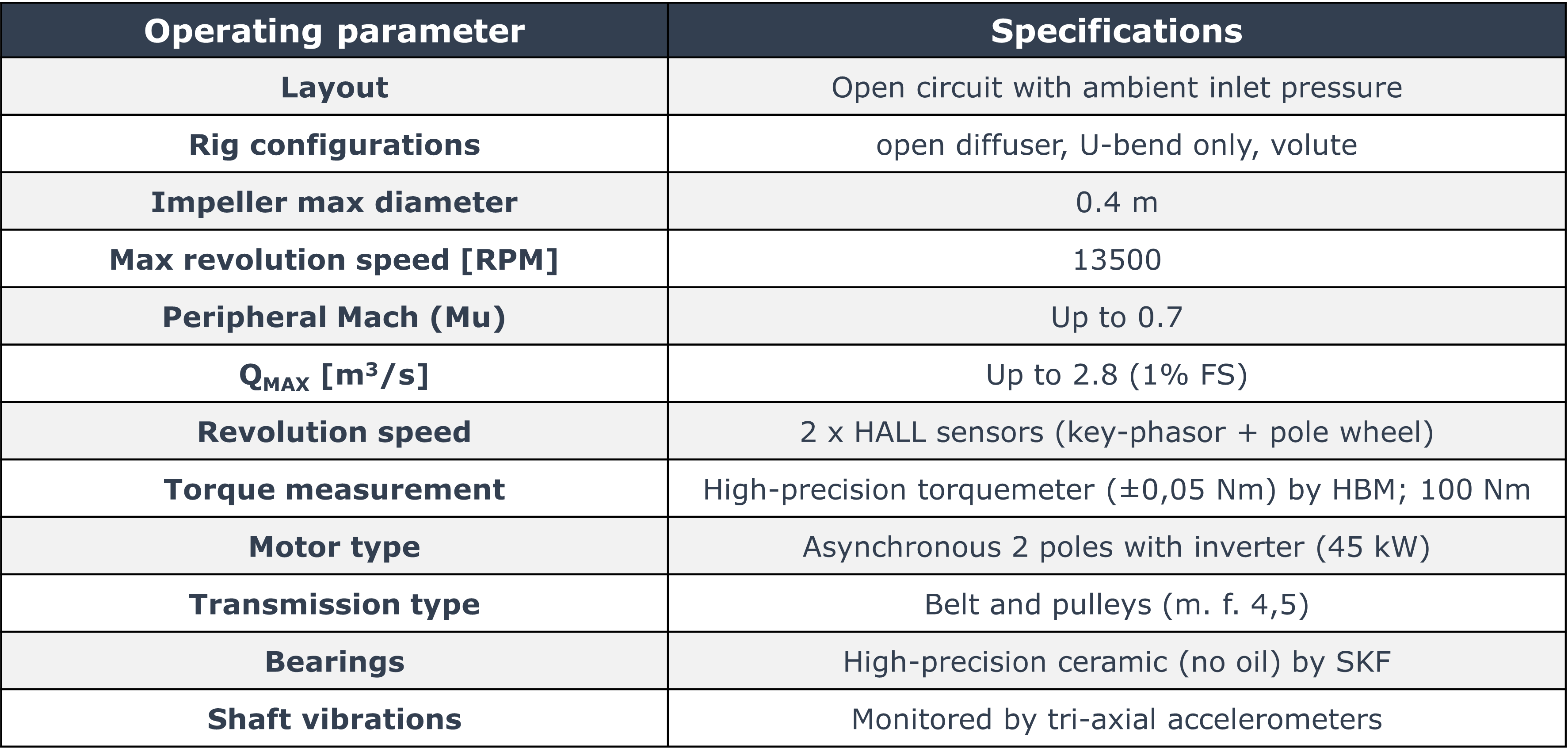

                                                                          Test bench characteristics

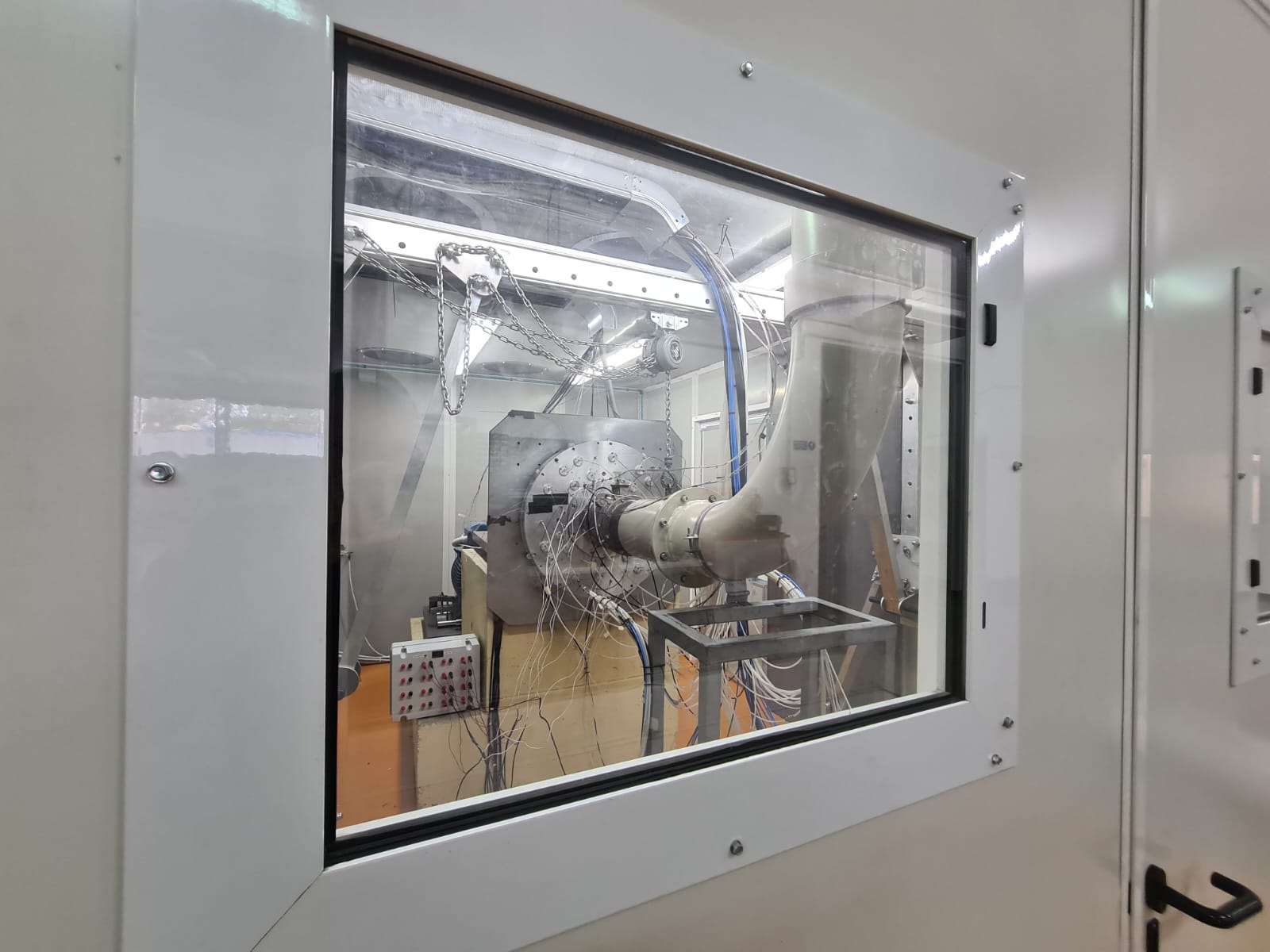

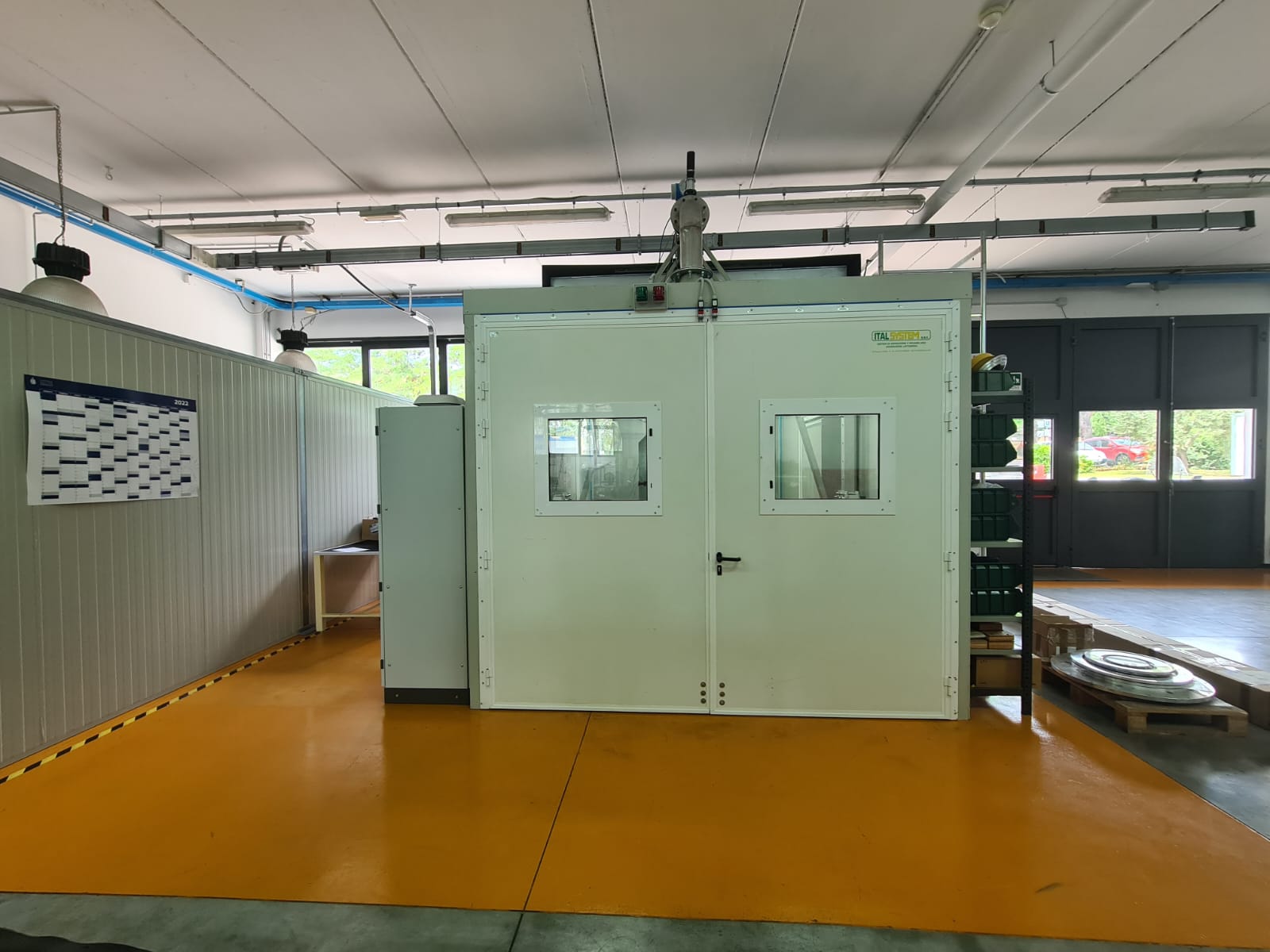

                                         External view of the cell containing the centrifugal compressor test bench.

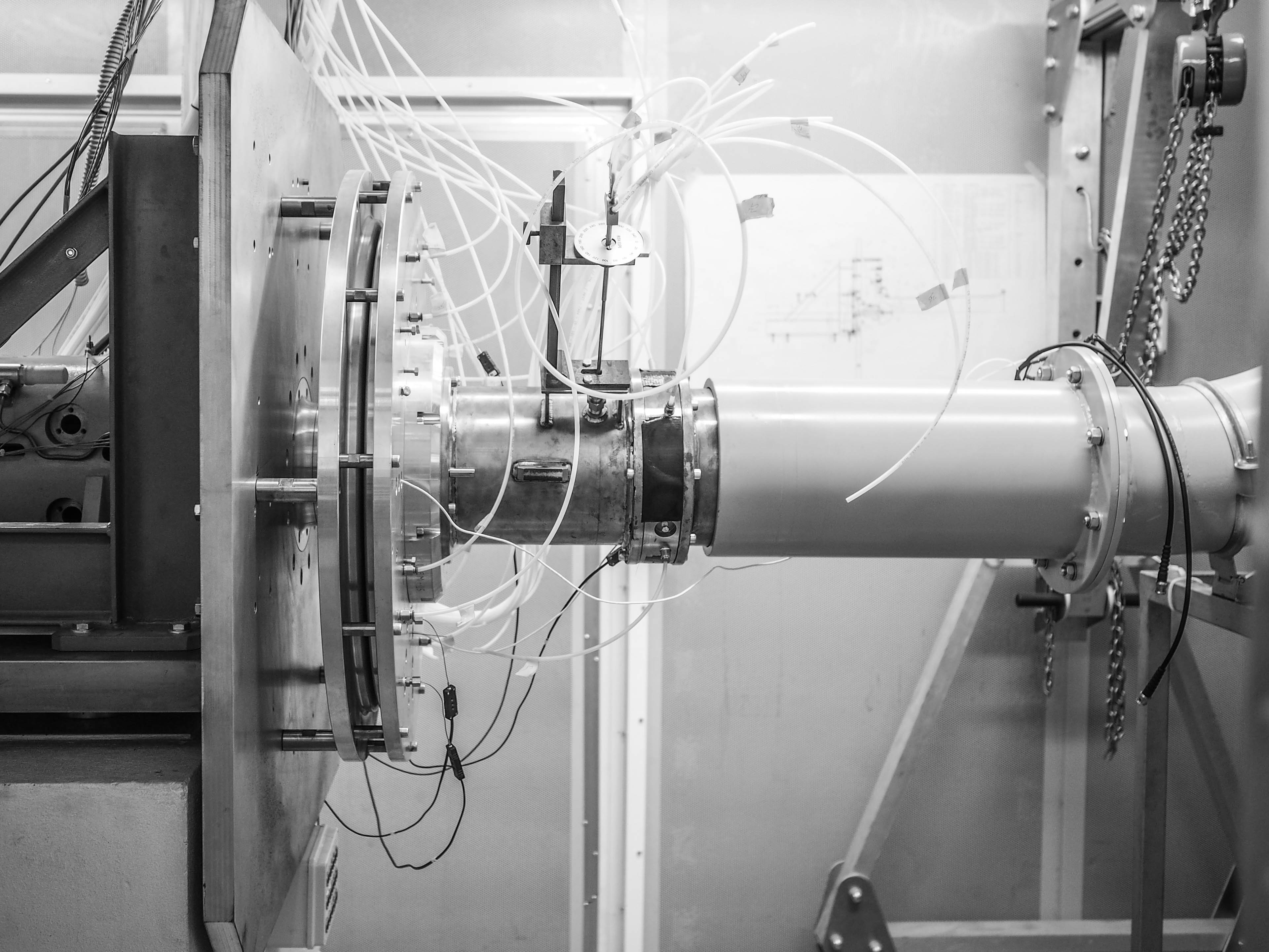

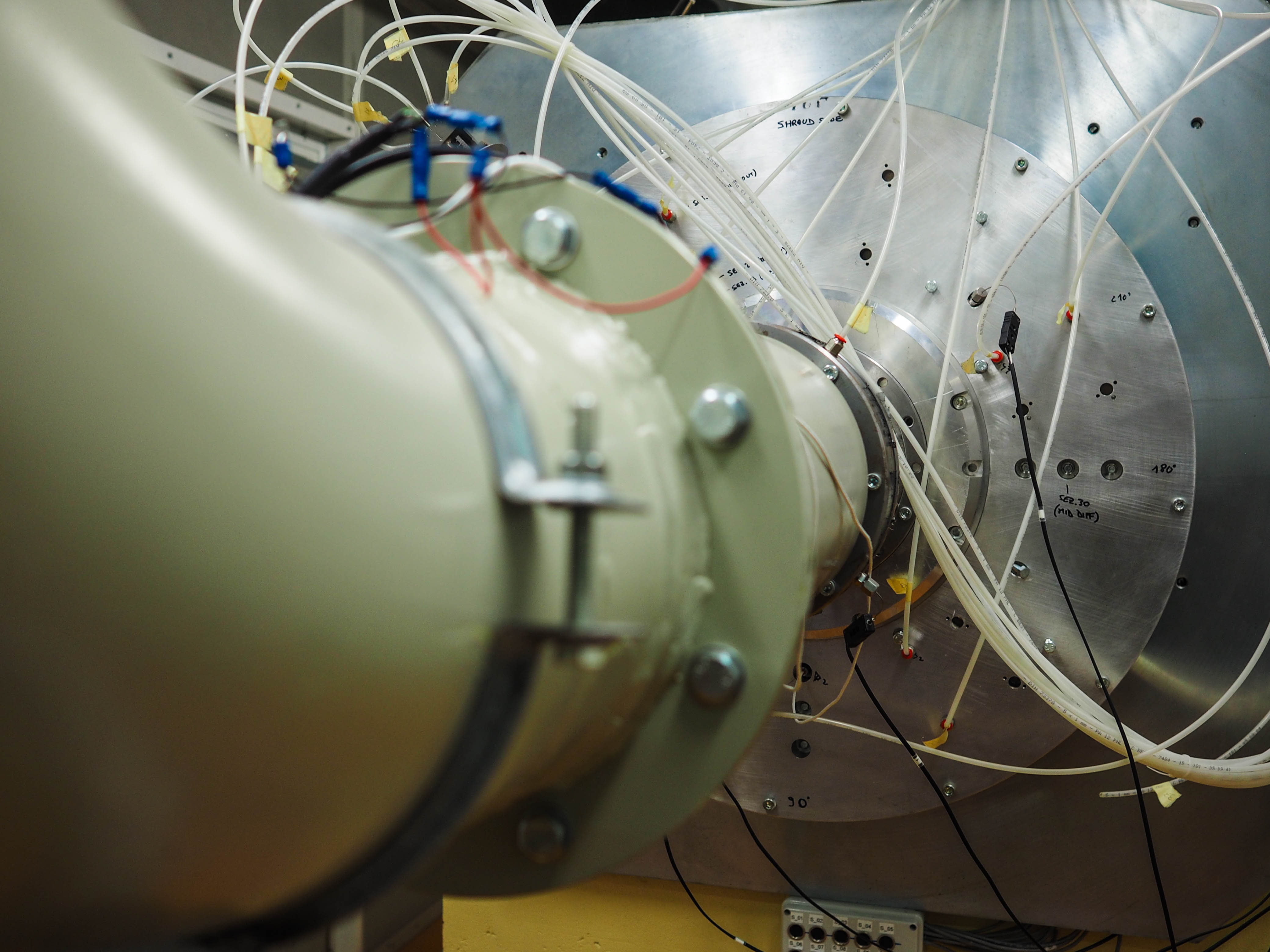

Side view and front view of centrifugal compressor for Oil&Gas applications,

with pneumatic connections of the sensors to measure pressure and flow direction.

The stage is installed on a test bench through which a thermo-fluid dynamic analysis is performed.

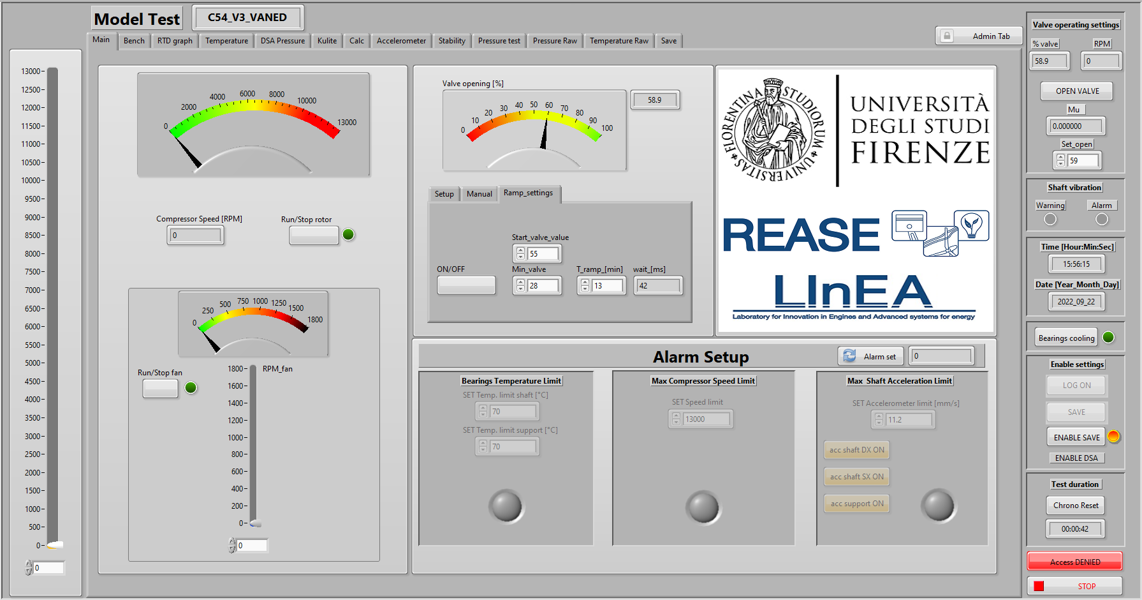

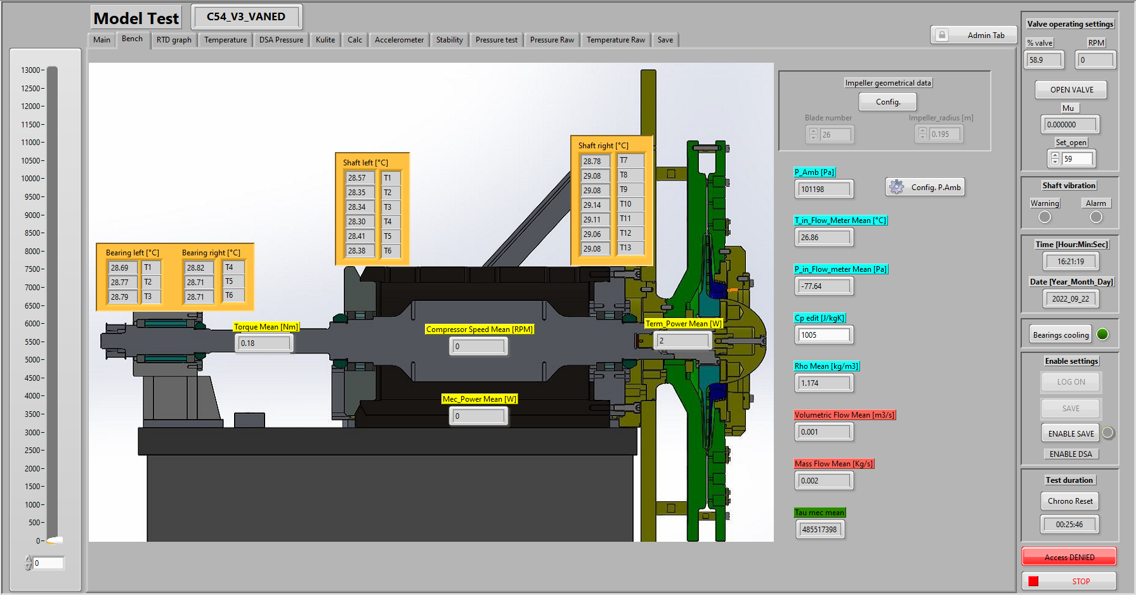

	Acquisition system to monitor the centrifugal compressor outputs.

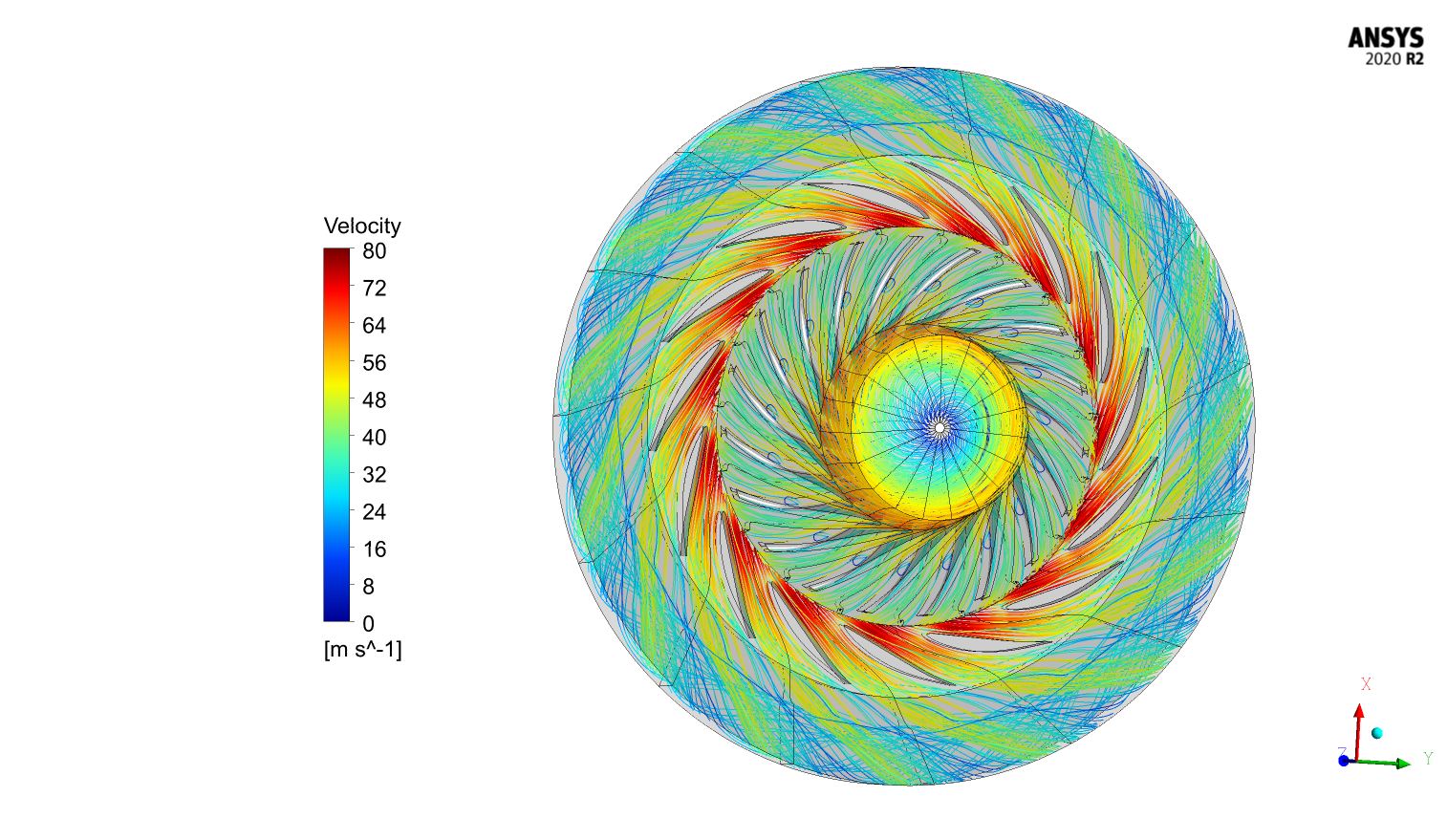

CFD analysis of impeller and diffuser



Other facilities

• flow test bench
• acoustic test rig
• small wind tunnel for sensor calibration
• mechanical workshop
